| AFD Series Fine Bubble Disc Diffuser |
Available in various length
|
AFT500 (500mm L), AFT600 (600mm L),
AFT750 (750mm L) & AFT1000 (1000mm L) |
AFD270 9"Disc
|
Design airflow - 2.5 ~ 5 Sm³/hr/diffuser
Airflow range - 0 ~ 12 Sm³/hr/diffuser |
AFD350 12” Disc
|
Design airflow - 4 ~ 8 Sm³/hr/diffuser
Airflow range - 0 ~ 20 Sm³/hr/diffuser |

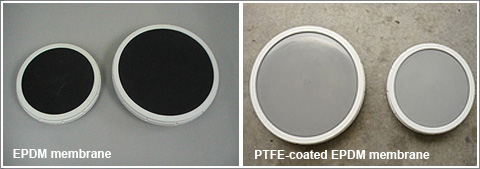

Membrane
|
Compression Molded EPDM membrane
PTFE-coated EPDM membrane |
Diffuser body
|
Polypropylene (PP) |
Connection
|
Quick-Connect(QC) saddle
PVC grommet |
| SSI manufactures Disc Diffusers with compression molded membranes that have better tear resistance than those membranes produced by injection molding. Membranes of highest possible quality and technology with years of trouble free efficient operation. |

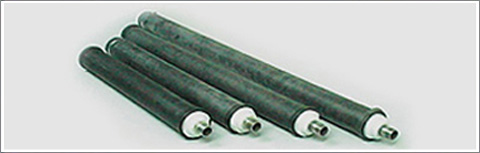

| AFT series Membrane Tube diffuser with Nipple Connection |
Available in various length
|
AFT500 (500mm L), AFT600 (600mm L),
AFT750 (750mm L) & AFT1000 (1000mm L) |
62mm Ø tube
|
Design airflow - 2.6 ~ 14.5 Sm³/hr/m,
Airflow range - 0 ~ 18 Sm³/hr/m |
91mm Ø tube
|
Design airflow - 3.4 ~ 22 Sm³/hr/m,
Airflow range - 0 ~ 27 Sm³/hr/m |
Membrane
|
EPDM / PTFE-coated EPDM |
Diffuser body
|
ABS |
Connection
|
¾" (19mm) SS nipple |

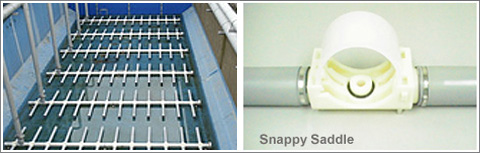

| AFTS series Membrane Tube Diffuser with Snappy Saddle |
| Supply in pair for 1000mm tube diffuser, total length: 2.16m. |
62mm Ø tube
|
Design airflow - 2.6 ~ 14.5 Sm³/hr/m,
Airflow range - 0 ~ 18 Sm³/hr/m |
91mm Ø tube
|
Design airflow - 3.4 ~ 22 Sm³/hr/m,
Airflow range - 0 ~ 27 Sm³/hr/m |
Membrane
|
EPDM / PTFE-coated EPDM |
Diffuser body
|
ABS |
Connection
|
Snappy saddle (factory assembled) |
| Only one drilled hole on pipe is needed for SSI snappy saddle mount, simple and quick, which can be done by one person. |
